14 f HDPE central loose tube optical fiber cable GYXS

FOB Reference Price:Get Latest Price
$0.50 - $0.60 / Meters | 2000 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
HONGAN
Model Number:
GYXS-14
Number of Conductors:
≥ 10
Name:
Unitube steel wire armoured fiber optic cable
Jacket:
PE
core:
14 core
installation:
under ground , underwater, duct,pipeline
fiber:
G655 G652 G657 OM1 OM2 OM3
Certification:
CE,ROHS,UL,TLC,SGS,ISO9001
Application:
Telecommunication,Trunk line,distribution
Length:
2000M/customized
Color:
Black
armour:
steel tape
Type:
Coaxial
Supply Ability
Supply Ability:
500000 Kilometer/Kilometers per Month
Packaging & Delivery
Packaging Details
packaging
wooden roll add covering board or customized
size: 800*800*760
850*850*760
Port
Qingdao
Lead Time :
7-30 working days
Video Description
Related Products

ADSS fiber opitc cable

Indoor aerial cable GJYXFCH

SWA underwater fiber optic cable

Indoor tight buffer cable

Cat6 network cable

Independe FTTh drop cable

Product Description

14 f HDPE central loose tube optical fiber cable GYXS

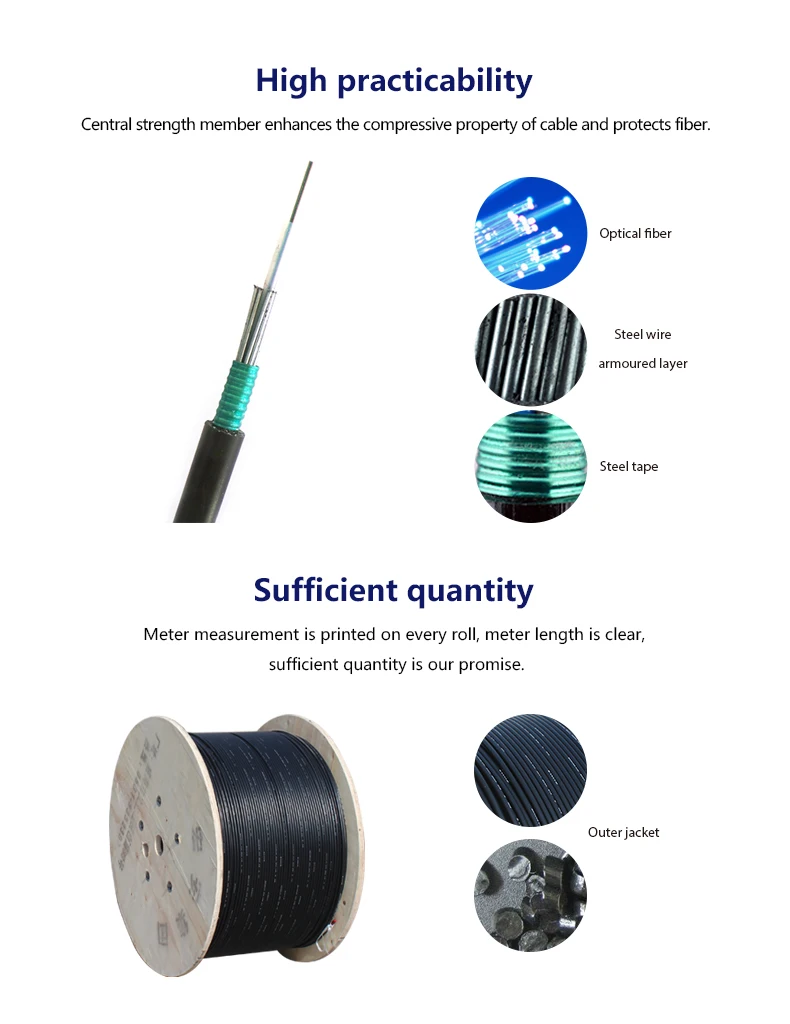

For the GYXS optical cable, the single mode or multimode optical fibers are put into the central tube made of high modulus polyester. The tube is full of the waterproof filling compound. It is armoured by a circle of steel wire which provide an excellent pressure resistant performance. Outside is wrapped longitudinally by a layer of waterproof tape and steel tape.

Fiber count
Structure
Fibers per tube
Loose tube diameter(mm)
Thickness of outer jacket(mm)
Cable diameter(mm)
Cable Weight(kg/km)
2
Unitube
2
2.4±0.1
1.6±0.1
9.2±0.5
125
4
Unitube
4
2.4±0.1
1.6±0.1
9.2±0.5
125
6
Unitube
6
2.4±0.1
1.6±0.1
9.2±0.5
125
8
Unitube
8
2.4±0.1
1.6±0.1
9.2±0.5
126
10
Unitube
10
2.4±0.1
1.6±0.1
9.2±0.5
126
12
Unitube
12
2.4±0.1
1.6±0.1
9.2±0.5
126
14
Unitube
14
3.2±0.1
1.6±0.1
10.0±0.5
149
16
Unitube
16
3.2±0.1
1.6±0.1
10.0±0.5
150
18
Unitube
18
3.2±0.1
1.6±0.1
10.0±0.5
150
20
Unitube
20
3.2±0.1
1.6±0.1
10.0±0.5
150
22
Unitube
22
3.2±0.1
1.6±0.1
10.0±0.5
150
24
Unitube
24
3.2±0.1
1.6±0.1
10.0±0.5
150
Item
Parameters
Loose tube
Material
PBT
Color
Natural color
Wire armoured
Material
Galvanized steel wire
Steel diameter
0.9mm
Armoured
Material
Plastic coated Steel strip
Outer jacket
Material
MDPE
Color
Black
Min. bending radius
Static
10 times cable diameter
Dynamic
20 times cable diameter
Tensile performance
Short term
1500N
Crush
Short term
Packing & Delivery
Certifications
Our Company
FAQ

1. Are you the real factory?

Yes,our factory is located in Shandong Province, near to Qingdao Port,having more than 30- years munufature experience. Welcome to visit.
2. What is your fiber brand?
Most fiber is from Weixin, a fiber brand owned by Hongan ourselves. But we also purchase fiber from Corning, YOFC and other brands.
3.What is your main products?
Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.
4.What is your payment term?
30% in advance, 70% before delivery.
