high tensile submarine double steel wire armored underwater fiber optic cable GYTA333

FOB Reference Price:Get Latest Price
US $0.8-6 / Meters | 2000 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HONGAN
Model Number:
GYTA333 2-288
Number of Conductors:
≥ 10
fiber:
G652 G655 G657 SM MM OM1 OM2 OM3 OM4
Certification:
CE,ROHS,UL,TLC,SGS
Application:
off shore , underwater,duct,direct burial
Jacket:
PE
fiber count:
2-288 core
Service:
OEM, ODM
Name:
underwater fiber optic cable
package:
1 2 3km per drum
Color:
Black
Shield:
double stee wire armor +Aluminum Tape
Type:
Coaxial
Supply Ability
Supply Ability:
1000000 Kilometer/Kilometers per Month
Packaging & Delivery
Packaging Details
wooden drum or according to customer's advice
Port
Qingdao
Lead Time :
7-30 working days
Video Description
Product Description

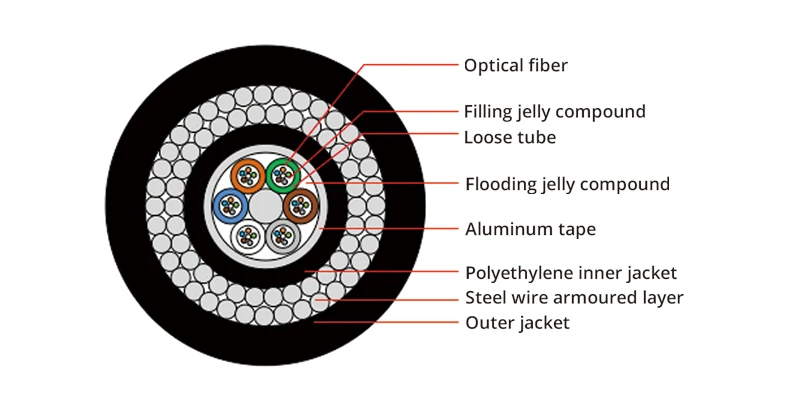

high tensile submarine double steel wire armored underwater fiber optic cable GYTA333

GYTA333 fiber optic cable is the type of fiber optic cable used in shallow-water as well as climbing lay.  In other words, GYTA333 fiber optic cable is referred as an underwater cable since is used under water. In most cases, the GYTA333 fiber optic cable is laid in the water drainage and it has fantastic feature that enables it to perform effectively under water environments.  Additionally, GYTA333 fiber optic cable has a humidity resistance as well as excellent mechanical property that prevents it from breaking. Also, it is rodent-proof as well as termite-proof and that makes it adapt well to watery environment.

Item
­Parameters
Loose tube
Material
PBT
Color
Full color spectrum
Filler
Material
PE
Color
Black
CSM
Material
Phosphating steel wire
Armoured
Material
Plastic coated aluminum strip
Inner jacket
Material
MDPE
Color
Black
Armoured
Material
Galvanized steel wire
Diameter
1.2mm
Outer jacket
Material
MDPE
Color
Black
Min. bending radius
Static
15times cable diameter
Dynamic
30 times cable diameter
Repeating bending
Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
Tensile performance
Short term
10000N The addition attention≤0.1dB
Crush
Short term
5000N/100mm The addition attention≤0.1dB
Torsion
Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
Impact
Impact energy:1kg×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.
Packing & Delivery
production Line
Certifications
Our Company
Exhibition Show
FAQ

1. Are you the real factory?

Yes,our factory is located in Shandong Province, near to Qingdao Port,having more than 30- years munufature experience. Welcome to visit.
2. What is the conductor material?
All the cable conductor is made of oxygen-free bare copper. If you need CCA, CCS or other material conductor, please tell the customer service staff.
3.What is your main products?
Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.
4.What is your payment term?
30% in advance, 70% before delivery.
