LSZH fire-retardant plenum CMR CAT6 OEM network cable per meter price

FOB Reference Price:Get Latest Price
$0.20 - $0.40 / Meters | 10 Meter/Meters (Min. Order)
Customization:
Customized logo (Min. Order: 3000 Meters)
Customized packaging (Min. Order: 3000 Meters)

More

Graphic customization (Min. Order: 3000 Meters) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Hongan
Model Number:
HSYZ6-4
Number of Conductors:
8
Type:
Cat 6
Name:
Fire resistant Cat6 network cable
Certification:
CE,ROHS,UL,TLC,SGS
Test:
SECRI Fluke test passed
package:
pull carton box
Length:
305m 1000ft 500m 1000m
Application:
Cabling System,broadband connection, data transmission
pair count:
4 pairs
Conductor:
Solid Bare Oxygen Free Copper
Shield:
Unshielded Twisted Pair
Supply Ability
Supply Ability:
100000 Box/Boxes per Month
Packaging & Delivery
Packaging Details
pull box,coiled roll, 305m/box
Port
Qingdao
Video Description
Product Description

LSZH fire-retardant plenum CMR CAT6 OEM network cable per meter price

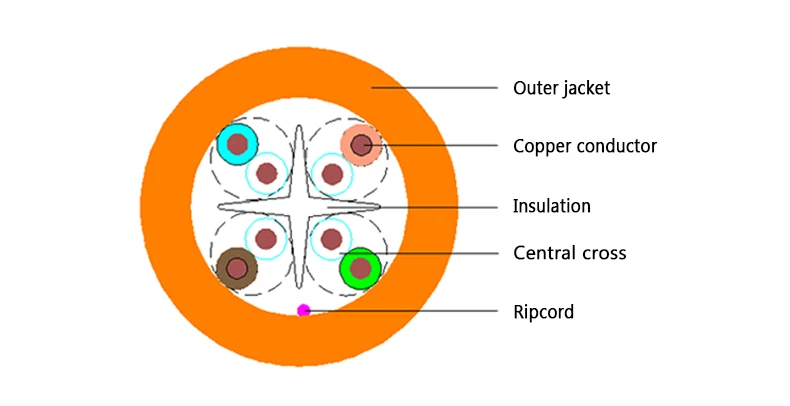

Cat6 plenum (CMP) (UTP)communication plenum rated jacket cable, Solid conductors and tested up to 550 MHz and 4-Pairs | 8 solid conductors 23 (AWG) American Wire Gauge conductors, jacket is fire retardant.Providing enhanced performance in any environment. Cat6 Plenum cable is tested bandwidth broadband, audio and video applications, best practiced for office, home, building and construction areas installations. Suggested for long run installations for network adapters, routers, switches, DSL/modem, hubs and keystone jacks, this cable recommended where high-performance data structure is required.
Item
Parameter
Physical Electrical Characteristics
DC resistance (max)
7.5Ω/100m at 20℃
Mutual capactitance (max)
5.6nF/100m
Unbalanced capacitance (max)
330pF/100m
Dielectric strength between conductors (min)
2.5kV/2s
Impedance
1-250MHz   100±15Ω
Differential phase delay (max)
45ns/100m
Operating temperature
-20~+60℃
Permitted bend radius
10 times diameter of the cable.
Material
Conductor
23AWG Copper
Insulation
Solid HDPE or Skin-Foam-Skin PE
Sheath
Environment Friendly PVC or Flame resistance PE or low smoke zero halogen polyolefin (LSZHP)
Application
Standard
ISO/IEC11801
ANSI/TIA/EIA-568-B.2
YD/T1019
UL444
Applications
10Base-T4
100Base-TX
100Base-VG-ANYLAN
155Mbps ATM
622 Mbps ATM
1000Base-T
1000Base-TX
10Gbase-T
Packing & Delivery
Certifications
Production Line
Our Company
Exhibition Show
FAQ

1. Are you the real factory?

Yes,our factory is located in Shandong Province, near to Qingdao Port,having more than 30- years munufature experience. Welcome to visit.

2. What is the conductor material?

All the cable conductor is made of oxygen-free bare copper. If you need CCA, CCS or other material conductor, please tell the customer service staff.

3.What is your main products?

Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.

4.What is your payment term?

30% in advance, 70% before delivery.
