Shandong cable factory whosale price All dielectric Fiber optic cable GYFY

FOB Reference Price:Get Latest Price
$0.10 - $0.30 / Meters | 2000 Meter/Meters (Min. Order)
Customization:
Customized logo (Min. Order: 2000 Meters)
Customized packaging (Min. Order: 2000 Meters)

More

Graphic customization (Min. Order: 2000 Meters) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HONGAN
Model Number:
GYFY
Number of Conductors:
4
Name:
Non-metallic duct fiber optic cable
Jacket:
PE
core:
4fo
installation:
duct,non-self supporting aerial
fiber:
G655 G652 G657 OM1 OM2 OM3
Certification:
CE,ROHS,UL,TLC,SGS,ISO9001
Application:
Access network,Trunk line,distribution
Length:
2000M/customized
service:
OEM ODM
structure:
loose tube stranded
Supply Ability
Supply Ability:
500000 Kilometer/Kilometers per Month
Packaging & Delivery
Packaging Details
packaging
iron wooden drum add covering board or customized
size:H 800~1100 W 760 L 800~1100
Port
Qingdao
Video Description
Related Products

Double jacket armored fiber optic cable GYTA53

Dome type fiber optic joint closure

Single steel wire armored unitube fiber optic cable GYXS

Indoor tight buffer cable

Cat6 network cable

Independe FTTh drop cable

Product Description

Shandong cable factory whosale price All dielectric Fiber optic cable GYFY

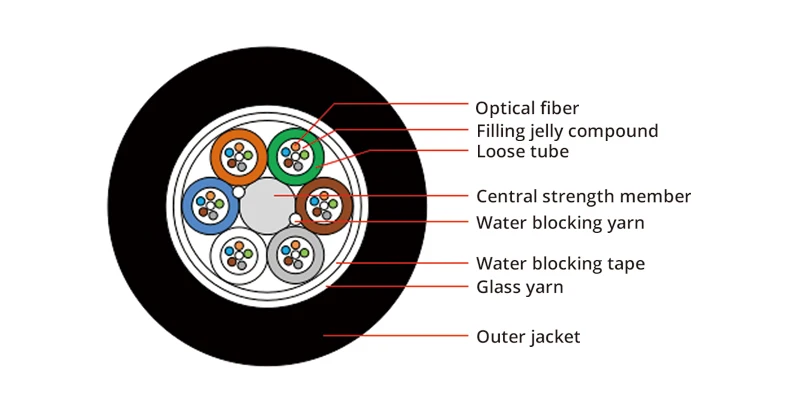

Fiber optic cable GYTA53, 2~288 fibers, central strength member (FRP), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, PE inner sheath, longitudinally covered by copolymer coated steel tape, PE outer sheath. G652D SM fiber.Detailed specification on your request.

Fiber count
Structure
Fibers per tube
Loose tube diameter(mm)
CSM diameter/pad diameter(mm)
Thickness of Inner jacket(mm)
Thickness of outer jacket(mm)
Cable diameter(mm)
Cable Weight(kg/km)
4
1+6
4
2.2±0.1
2.6/2.6
0.9±0.1
1.6±0.1
14.4 ±0.5
191
6
1+6
6
2.2±0.1
2.6/2.6
0.9±0.1
1.6±0.1
14.4 ±0.5
191
8
1+6
4
2.2±0.1
2.6/2.6
0.9±0.1
1.6±0.1
14.4 ±0.5
191
12
1+6
6
2.2±0.1
2.6/2.6
0.9±0.1
1.6±0.1
14.4 ±0.5
192
18
1+6
6
2.2±0.1
2.6/2.6
0.9±0.1
1.6±0.1
14.4 ±0.5
192
24
1+6
6
2.2±0.1
2.6/2.6
0.9±0.1
1.6±0.1
14.4 ±0.5
192
30
1+6
6
2.2±0.1
2.6/2.6
0.9±0.1
1.6±0.1
14.4 ±0.5
192
36
1+6
6
2.2±0.1
2.6/2.6
0.9±0.1
1.6±0.1
14.4 ±0.5
192
48
1+6
12
2.5±0.1
2.6/2.6
0.9±0.1
1.6±0.1
15.0 ±0.5
205
60
1+6
12
2.5±0.1
2.6/2.6
0.9±0.1
1.6±0.1
15.0 ±0.5
207
72
1+6
12
2.5±0.1
2.6/2.6
0.9±0.1
1.6±0.1
15.0 ±0.5
208
84
1+7
12
2.5±0.1
2.6/3.5
0.9±0.1
1.6±0.1
15.9 ±0.5
231
96
1+8
12
2.5±0.1
3.0/4.3
0.9±0.1
1.6±0.1
16.8 ±0.5
257
108
1+9
12
2.5±0.1
3.0/5.1
0.9±0.1
1.6±0.1
17.6 ±0.5
279
120
1+10
12
2.5±0.1
3.0/5.9
0.9±0.1
1.6±0.1
18.4 ±0.5
303
132
1+11
12
2.5±0.1
3.0/6.6
0.9±0.1
1.6±0.1
19.1 ±0.5
324
144
1+12
12
2.5±0.1
3.0/7.5
0.9±0.1
1.6±0.1
20.0 ±0.5
353
Item
Parameters
Loose tube
Material
PBT
Color
All colors display
Filler
Material
PE
Color
Black
CSM
Material
FRP
Inner armoured
Material
Plastic coated aluminum strip
Inner jacket
Material
MDPE
Color
Black
Outer armoured
Material
Plastic coated steel strip
Outer jacket
Material
MDPE
Color
Black
Min. bending radius
Static
12.5 times cable diameter
Dynamic
25 times cable diameter
Repeating bending
Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.
Tensile performance
Short term
3000N
Crush
Short term
3000N/100mm
Torsion
Load:250N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage.
Packing & Delivery
Certifications
Our Company
FAQ

1. Are you the real factory?

Yes,our factory is located in Shandong Province, near to Qingdao Port,having more than 30- years munufature experience. Welcome to visit.
2. What is your fiber brand?
Most fiber is from Weixin, a fiber brand owned by Hongan ourselves. But we also purchase fiber from Corning, YOFC and other brands.
3.What is your main products?
Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.
4.What is your payment term?
30% in advance, 70% before delivery.
