Outdoor GYFXY 12 core Unitube fiber optic cable

FOB Reference Price:Get Latest Price
$0.10 - $0.30 / Meters | 2000 Meter/Meters (Min. Order)
Lead Time:
Quantity(Meters) 1 - 2000 >2000
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 2000 Meters)
Customized packaging (Min. Order: 2000 Meters)

More

Graphic customization (Min. Order: 2000 Meters) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HONGAN
Model Number:
GYFXY
Number of Conductors:
2
Name:
unibute FRP fiber optic cable
Certification:
CE,ROHS,UL,TLC,CCC,ISO9001
Core number:
2 fo
Color:
Black
Jacket:
PE
Service:
OEM, ODM
Length:
2km per roll or customized
package:
wooden drum
Application:
trunk line, outdoor telecommunication
Supply Ability
Supply Ability:
500000 Kilometer/Kilometers per Month
Packaging & Delivery
Packaging Details
0.75*0.75*0.76m
Port
Qingdao
Lead Time :
Quantity(Meters) 1 - 2000 >2000
Est. Time(days) 5 To be negotiated
Video Description
Product Description

Outdoor GYFXY 12 core Unitube fiber optic cable

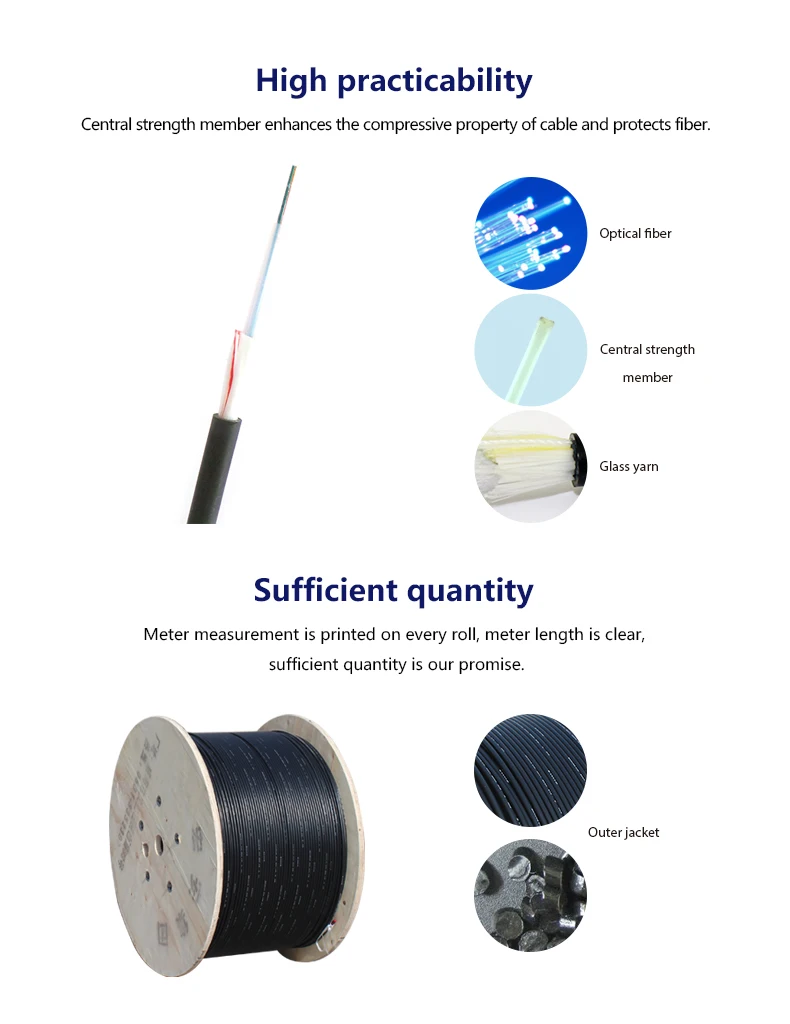

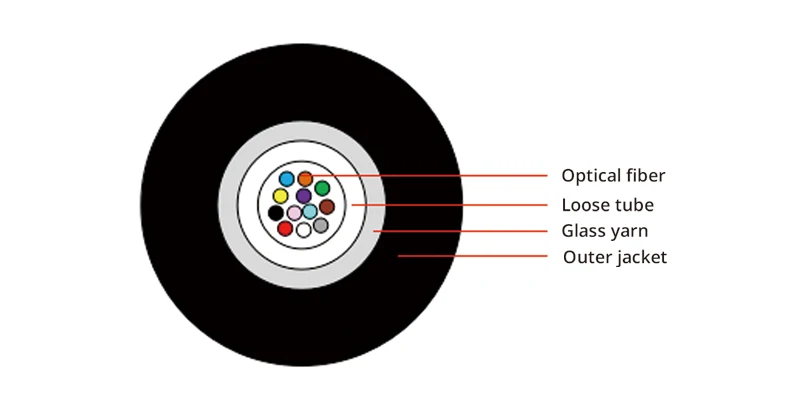

GYFXY fiber optic cable is a non-metallic one tube structure cable ensuring light weight, small diameter. The cable tubes, which are filled with water resistance filling compound, two parallel FRP strength member are placed two sides. PE sheath protects the cable from UV

Fiber count
Structure
Fibers per tube
Loose tube diameter(mm)
Thickness of outer jacket(mm)
Cable diameter(mm)
Cable Weight(kg/km)
2
Unitube
2
2.4±0.1
1.6±0.1
6.6±0.5
37
4
Unitube
4
2.4±0.1
1.6±0.1
6.6±0.5
37
6
Unitube
6
2.4±0.1
1.6±0.1
6.6±0.5
37
8
Unitube
8
2.4±0.1
1.6±0.1
6.6±0.5
37
10
Unitube
10
2.4±0.1
1.6±0.1
6.6±0.5
37
12
Unitube
12
2.4±0.1
1.6±0.1
6.6±0.5
37
14
Unitube
14
3.2±0.1
1.6±0.1
7.2±0.5
44
16
Unitube
16
3.2±0.1
1.6±0.1
7.2±0.5
44
18
Unitube
18
3.2±0.1
1.6±0.1
7.2±0.5
44
20
Unitube
20
3.2±0.1
1.6±0.1
7.2±0.5
44
22
Unitube
22
3.2±0.1
1.6±0.1
7.2±0.5
44
24
Unitube
24
3.2±0.1
1.6±0.1
7.2±0.5
44
Item
Parameters
Loose tube
Material
PBT
Loose tube
Color
Natural color
Reinforced pieces
Material
Glass yarn
Outer jacket
Material
MDPE
Color
Black
Min. bending radius
Static
10 times cable diameter
Min. bending radius
Dynamic
20 times cable diameter
Tensile performance
Short term
500N
Crush
Short term
500N/100mm
Packing & Delivery
Production Line
Certifications
Our Company
Exhibition Show
FAQ

1. Are you the real factory?

Yes,our factory is located in Shandong Province, near to Qingdao Port,having more than 30- years munufature experience. Welcome to visit.

2. What is your fiber brand?
Most fiber is from Weixin, a fiber brand owned by Hongan ourselves. But we also purchase fiber from Corning, YOFC and other brands.

3.What is your main products?
Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.

4.What is your payment term?
30% in advance, 70% before delivery.
