2 4 6 8 12 24 36 72 144 288 Core steel wire armored GYTA33 fiber optic cable price per meter

FOB Reference Price:Get Latest Price
$0.50 - $5.00 / Meters | 2000 Meter/Meters (Min. Order)
Customization:
Customized logo (Min. Order: 2000 Meters)
Customized packaging (Min. Order: 2000 Meters)

More

Graphic customization (Min. Order: 2000 Meters) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HONGAN
Model Number:
GYTA33(2-288)
Number of Conductors:
8
Certification:
CE,ROHS,UL,TLC,CCC,ISO9001
Name:
Armored fiber optic cable
Color:
Black
Installation:
offshore,Underwater,underground
Jacket:
PE
fiber count:
2-288 FO
OEM:
accept
HS code:
8544700000
Structure:
loose tube stranded jelly filled
Length:
1000 2000 3000 meter per roll
Supply Ability
Supply Ability:
1000000 Kilometer/Kilometers per Month
Packaging & Delivery
Packaging Details
wooden drum
Port
Qingdao
Video Description
Product Description

2 4 6 8 12 24 36 72 144 288 Core steel wire armored GYTA33 fiber optic cable price per meter

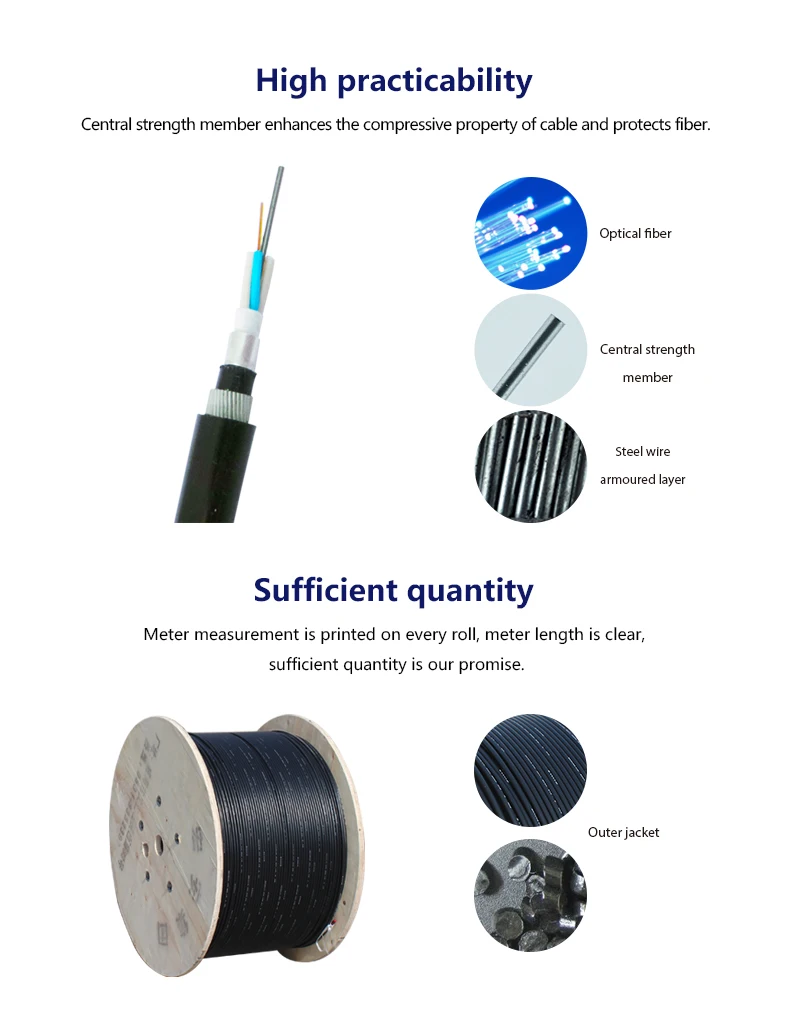

GYTA33 fiber optic cable is the type of fiber optic cable used in shallow-water as well as climbing lay.  In other words, GYTA33 fiber optic cable is referred as an underwater cable since is used under water. In most cases, the GYTA33 fiber optic cable is laid in the water drainage and it has fantastic feature that enables it to perform effectively under water environments.  Additionally, GYTA33 fiber optic cable has a humidity resistance as well as excellent mechanical property that prevents it from breaking. Also, it is rodent-proof as well as termite-proof and that makes it adapt well to watery environment.

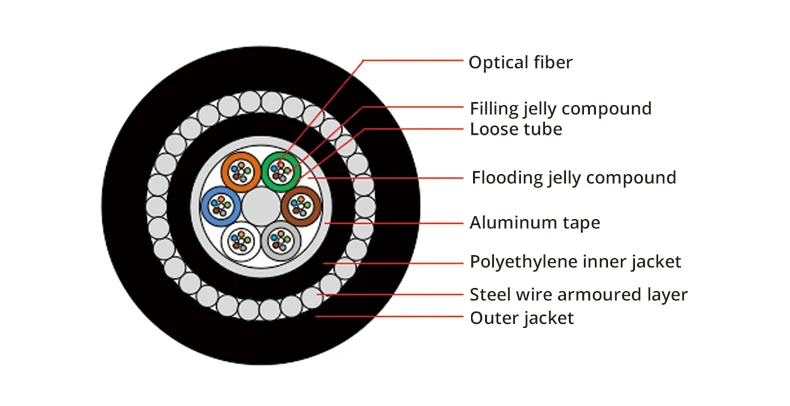

Item
Parameters
Loose tube
Material
PBT
Color
Blue
Filler
Material
PE
Color
Black
CSM
Material
Phosphating steel wire
Armoured
Material
Plastic coated aluminum strip
Inner jacket
Material
MDPE
Color
Black
Wire armoured
Material
Galvanized steel wire
Diameter
0.9mm
Outer jacket
Material
MDPE
Color
Black
Min. bending radius
Static
12.5times cable diameter
Dynamic
25times cable diameter
Repeating bending
Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
Tensile performance
Short term
10000N
Crush
Short term
5000N/100mm
Torsion
Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
Impact
Impact energy:1kg×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.
Packing & Delivery
Certifications
Production Line
Our Company
Exhibition Show
FAQ

1. Are you the real factory?

Yes,our factory is located in Shandong Province, near to Qingdao Port,having more than 30- years munufature experience. Welcome to visit.
2. What is the conductor material?
All the cable conductor is made of oxygen-free bare copper. If you need CCA, CCS or other material conductor, please tell the customer service staff.
3.What is your main products?
Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.
4.What is your payment term?
30% in advance, 70% before delivery.
