GYTS 12 core direct buried UG fiber optic cable G652D optic fiber products

FOB Reference Price:Get Latest Price
$0.10 - $0.30 / Meters | 2000 Meter/Meters (Min. Order)
Lead Time:
Quantity(Meters) 1 - 2000 >2000
Est. Time(days) 2 Negotiable
Customization:
Customized logo (Min. Order: 2000 Meters)
Customized packaging (Min. Order: 2000 Meters)

More

Graphic customization (Min. Order: 2000 Meters) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HONGAN
Model Number:
GYTS-12
Number of Conductors:
≥ 10
Name:
Jelly Filled Armoured Fiber Optic Cable
Certification:
CE,ROHS,UL,TLC,SGS,ISO9001
Jacket:
PE
installation:
underground, duct, overhead
core:
12 fo
fiber:
G655 G652 G657 OM1 OM2 OM3 OM4
Application:
Telecommunication,Trunk line
Length:
2000M/customized
Color:
Black
central strength member:
steel wire
Supply Ability
Supply Ability:
500000 Kilometer/Kilometers per Month
Packaging & Delivery
Packaging Details
wooden750*760*760
Port
Qingdao
Lead Time :
Quantity(Meters) 1 - 2000 >2000
Est. Time(days) 2 To be negotiated
Video Description
Related Products

Ftth Drop cable GJXFH

Non metallic unitube cable

SWA underwater fiber optic cable

Indoor tight buffer cable

Cat6 network cable

Independe FTTh drop cable

Product Description

GYTS 12 core direct buried UG fiber optic cable G652D optic fiber products

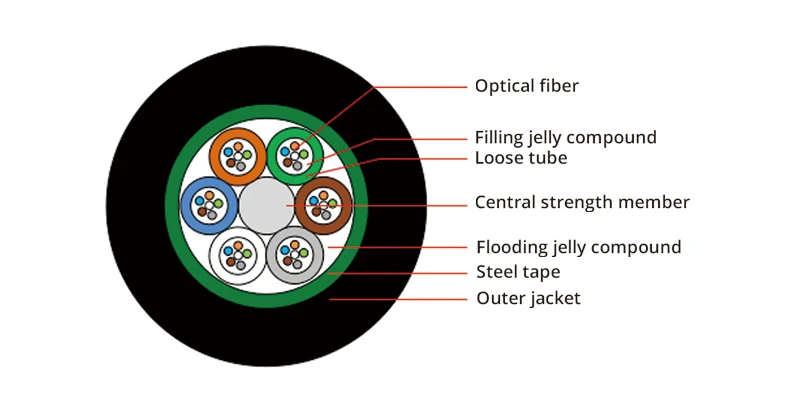

GYTS is used for duct or aerial applications. These steel tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance. It is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene; High strength loose tube that is hydrolysis resistant. Hongan provides GYTS from 4 fiber cores to 288 fiber cores. Both single mode type and multimode types are available. We also provide Customized Service such as fiber number, fiber color and cable length, etc.

Item
Parameters
Loose tube
Material
PBT
Color
All colors display
Filler
Material
PE
Color
Black
CSM
Material
Phosphating steel wire
Armoured
Material
Plastic coated steel strip
Outer jacket
Material
MDPE
Color
Black
Min. bending radius
Static
10 times cable diameter
Dynamic
20 times cable diameter
Repeating bending
Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
Tensile performance
Short term
1500N
Crush
Short term
1000N/100mm
Torsion
Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
Impact
Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.
Packing & Delivery
Certifications
Our Company
FAQ

1. Are you the real factory?

Yes,our factory is located in Shandong Province, near to Qingdao Port,having more than 30- years munufature experience. Welcome to visit.
2. What is your fiber brand?
Most fiber is from Weixin, a fiber brand owned by Hongan ourselves. But we also purchase fiber from Corning, YOFC and other brands.
3.What is your main products?
Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.
4.What is your payment term?
30% in advance, 70% before delivery.
