Manufacturer price single mode fiber optic cable aerial 12 core fiber optic cable

FOB Reference Price:Get Latest Price
$5.10 - $10.20 / Meters | 2000 Meter/Meters (Min. Order)
Lead Time:
Quantity(Meters) 1 - 2000 >2000
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 2000 Meters)
Customized packaging (Min. Order: 2000 Meters)

More

Graphic customization (Min. Order: 2000 Meters)
customized design (Min. Order: 2000 Meters) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
hongan
Model Number:
adss
Name:
All dielectric self supporting fiber optic cable
Jacket:
environmental HDPE
Application:
Municipalities/Co-ops/Utilities/Telco/Broadband/Enterprise
installation:
aerial,overhead
core count:
276 fo
Certification:
CE/ROHS/UL/TLC/SGS/ISO9001
Span:
80m 100m or customerized
Type:
S-Z stranded type
Strength member:
Kevlar Aramid Yarn
fiber:
G652 G655 G657 OM1 OM2 OM3 OM4
Supply Ability
Supply Ability:
1000000 Kilometer/Kilometers per Month
Packaging & Delivery
Packaging Details
Wooden drum
Port
qingdao
Lead Time :
Quantity(Meters) 1 - 2000 >2000
Est. Time(days) 5 To be negotiated
Video Description
Product Description

Manufacturer price single mode fiber optic cable aerial 12 core fiber optic cable

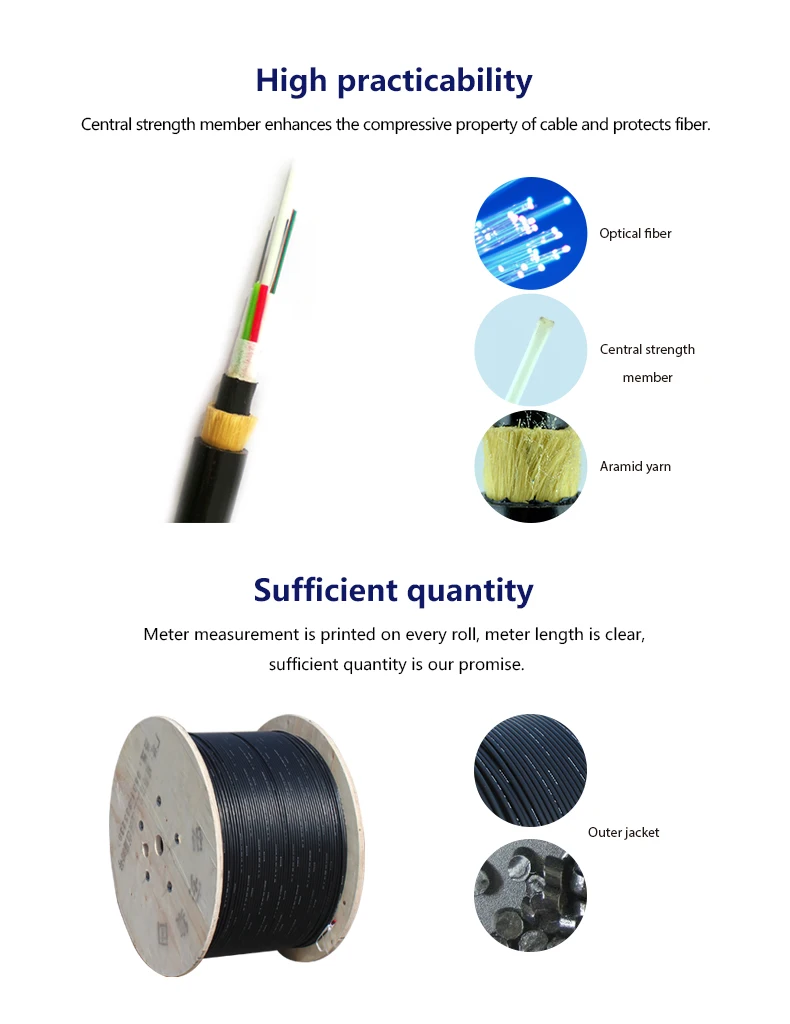

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements. It is used by electrical utility companies as a communications medium, installed along existing overhead transmission lines and often sharing the same support structures as the electrical conductors.
ADSS is an alternative to OPGW and OPAC with lower installation cost. The cables are designed to be strong enough to allow lengths of up to 700 metres to be installed between support towers. ADSS cable is designed to be lightweight and small in diameter to reduce the load on tower structures due to cable weight, wind, and ice.

Item
Parameters
Loose tube
Material
PBT
Color
All colors display
Filler
Material
PE
Color
Black
CSM
Material
FRP
Inner jacket
Material
MDPE
Color
Black
Non-metal reinforced pieces
Material
Aramid yarn
Outer jacket
Material
MDPE
Color
Black
Min. bending radius
Static
12.5 times cable diameter
Dynamic
25 times cable diameter
Repeating bending
Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
Tensile performance
RTS                                            MAT                                                           EDS
21000                                      9200N                                                         5000
Crush
Short term
3000N/100mm
Torsion
Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
Impact
Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.
Related Products

Single sheath ADSS

Figure 8 GYXC8Y

Parallel Wire GYXTW

Tight buffer GJFJH

Indoor drop cable GJYXCH

CAT6 network cable

Packing & Delivery
Production Line
Certifications
Our Company
Exhibition Show
FAQ

1. Are you the real factory?

Yes,our factory is located in Shandong Province, near to Qingdao Port,having more than 30- years munufature experience. Welcome to visit.
2. What is your fiber brand?
Most fiber is from Weixin, a fiber brand owned by Hongan ourselves. But we also purchase fiber from Corning, YOFC and other brands.
3.What is your main products?
Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.
4.What is your payment term?
30% in advance, 70% before delivery.
