Armoured fiber copper composite cable

FOB Reference Price:Get Latest Price
$1.00 - $2.00 / Meters | 2000 Meter/Meters (Min. Order)
Lead Time:
Quantity(Meters) 1 - 2000 >2000
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 2000 Meters)
Customized packaging (Min. Order: 2000 Meters)

More

Graphic customization (Min. Order: 2000 Meters)
customized design (Min. Order: 2000 Meters) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HONGAN
Model Number:
GDTA-24
Number of Conductors:
≥ 10
Name:
HYBRID OPTICAL ELECTRICAL CABLE
Jacket:
PE
core:
24 CORE
installation:
underground, direct burial,duct,RRU
fiber:
G655 G652 G657 OM1 OM2 OM3
Conductor CSA:
2.5 mm2
Application:
Telecommunication,Trunk line,distribution
Length:
2000M/customized
service:
OEM ODM
armour:
aluminum tape
Supply Ability
Supply Ability:
500000 Kilometer/Kilometers per Month
Packaging & Delivery
Packaging Details
packaging
iron wooden drum add covering board or customized
Size: H 950~1800, W 950~1800, L 760~1080
Port
Qingdao
Lead Time :
Quantity(Meters) 1 - 2000 >2000
Est. Time(days) 5 To be negotiated
Video Description
Related Products

Double jacket armored fiber optic cable GYTA53

Double jacket double steel wire armored fiber optic cable GYTA333

Single steel wire armored unitube fiber optic cable GYXS

Indoor tight buffer cable

Cat6 network cable

Independe FTTh drop cable

Product Description

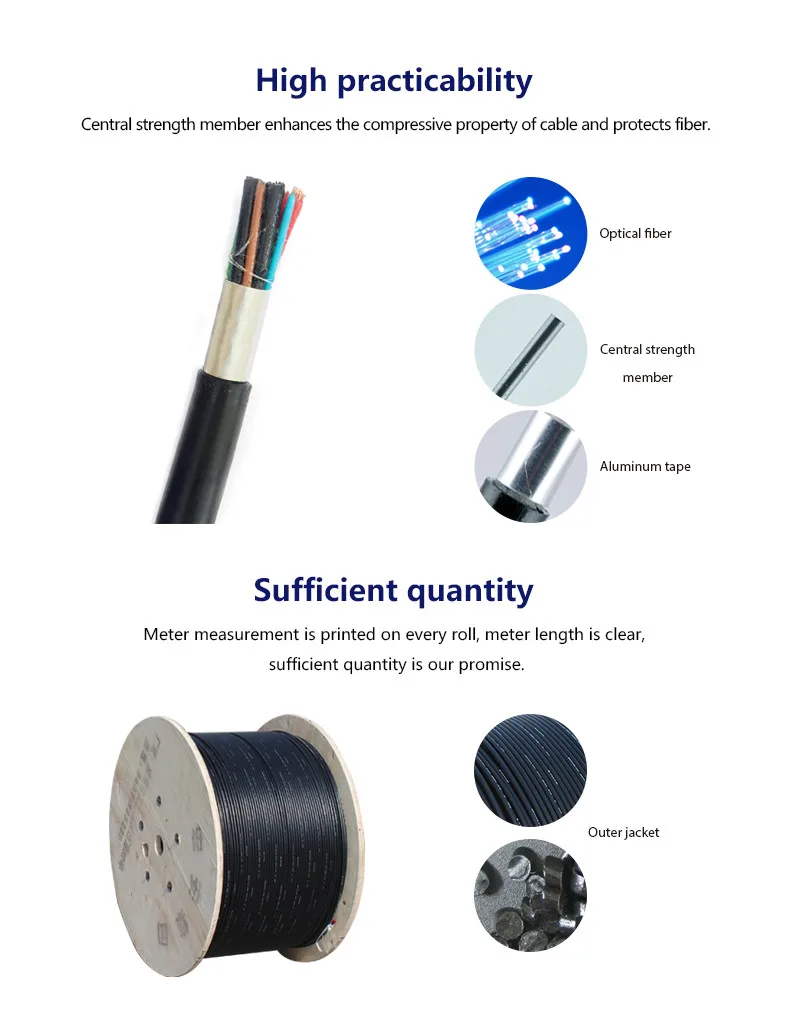

Armoured fiber copper composite cable

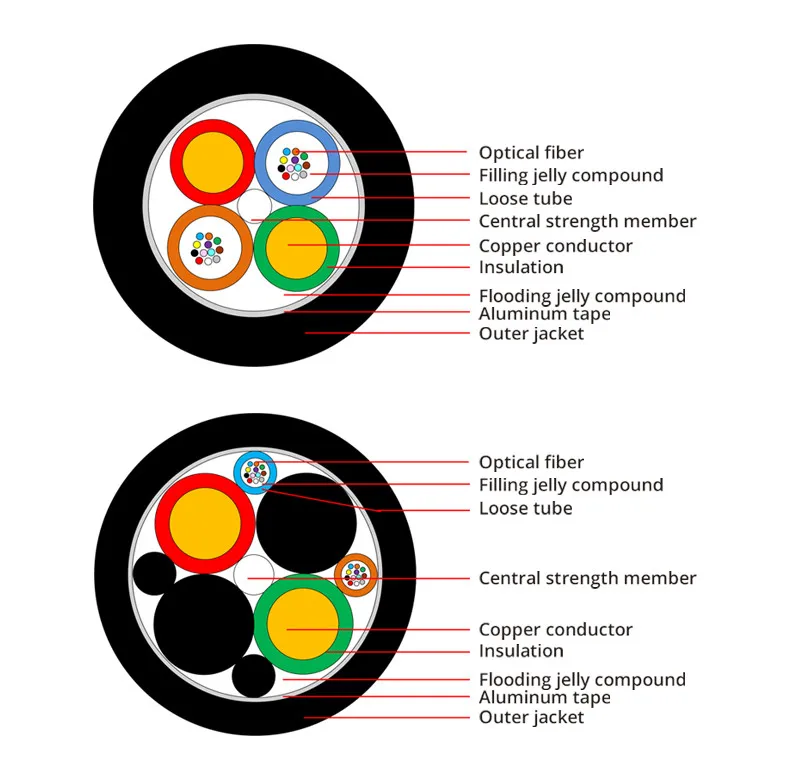

GDTA/GDTS hybrid optical and electrical stranded loose tube cable consist of optical unit and electrical unit.
The optical and electrical hybrid design can decrease the construction and installation cost, suitable for remote power and data supply for RRU.

Fiber count
Structure
Fibers per tube
Loose tube diameter(mm)
Conductor cross-section (mm2)
CSM diameter/pad diameter(mm)
Thickness of outer jacket(mm)
Cable diameter(mm)
Cable Weight(kg/km)
24
1+6
6
2.5±0.1
1
1.8/2.8
1.6±0.1
12.8±0.5
146
24
1+6
6
3.0±0.1
1.5
1.8/3.3
1.6±0.1
14.3±0.5
181
24
1+4
6
1.8±0.1
2.5
1.8/1.8
1.6±0.1
14.1±0.5
197
24
1+4
6
1.8±0.1
4
1.8/1.8
1.6±0.1
15.2±0.5
242
24
1+4
6
1.8±0.1
6
2.0/2.0
1.6±0.1
16.6±0.5
303
24
1+4
6
1.8±0.1
10
1.8/2.8
1.6±0.1
20.1±0.5
436
24
1+4
6
1.8±0.1
16
1.8/3.3
1.6±0.1
22.8±0.5
597
Item
Parameters
Loose tube
Material
PBT
Color
All colors display
Filler
Material
PE
Color
Black
Electrical unit
Material of Insulation
HDPE
CSM
Material
Phosphating steel wire
Armoured
Material
Plastic coated aluminum strip
Outer jacket
Material
MDPE
Color
Black
Min. bending radius
Static
12.5times cable diameter
Dynamic
25 times cable diameter
Tensile performance
Short term
1500N
Crush
Short term
1000N/100mm
Packing & Delivery
Certifications
Our Company
FAQ

1. Are you the real factory?

Yes,our factory is located in Shandong Province, near to Qingdao Port,having more than 30- years munufature experience. Welcome to visit.
2. What is your fiber brand?
Most fiber is from Weixin, a fiber brand owned by Hongan ourselves. But we also purchase fiber from Corning, YOFC and other brands.
3.What is your main products?
Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.
4.What is your payment term?
30% in advance, 70% before delivery.
